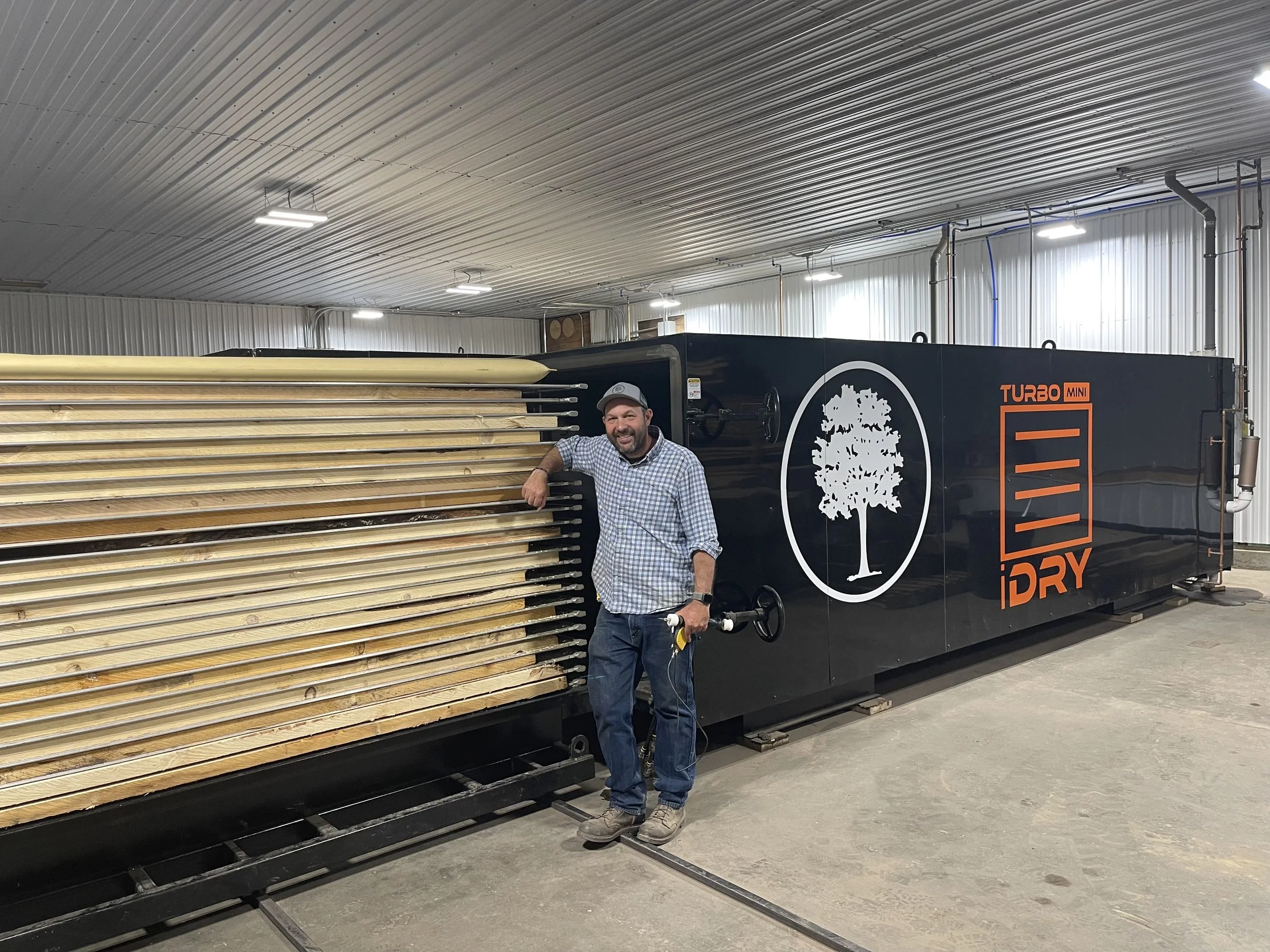

The iDRY TURBO Mini is our heating plate style vacuum kiln. This wood dryer uses heating plates to directly heat wood under a lower vacuum than the other iDRY models, which makes it the fastest method of drying lumber while still offering superior quality over other drying methods. The press option is also very effective with this style of kiln thanks to the heating plates’ ability to distribute all the force of the bladder down on every square inch of the lumber.

This kiln is sized and designed for furniture, cabinet and millwork shops who are looking for the flattest dried lumber possible. Cabinet manufacturers especially have seen 30-40% yield increases and major throughput improvements. Imagine receiving green lumber on Monday, drying it, and putting it directly into your 4 sided planer/moulder by the end of the week! No ripping, cutting and planing to get a flat piece of wood you can actually work with!!

Capacity: up to 2500 board feet (More Info)
Heating Plates and Lumber Pile:
17ft L x 48in W x 55in T
Power requirement: 208-230V 1PH 60A (hybrid boiler and electric)
Operating Cost: $0.04 to $0.06 per board foot
Drying Time:  Approximately 2x faster than iDRY Standard and PLUS
Heating: Hot water heating plates (185F max temp) via
Electric heater and Propane or Natural Gas Heated Boiler Included
Installation: Installed in above freezing and dry space, water connection, drain, 208-230V 40/60A power. For best performance ambient temperature should be 60-80F.
Loading: Hand Loaded, material handling systems available (External Track and Trolley Included)
Water requirement: 1/2” connection, Managed treated water @ 70F or less with min avg flow of 1.5 gpm.
Controls: Touch Screen
Bladder Press: (125,000 lbs of downward weight)
Total Weight of equipment: 14,000lbs
Includes:
34 Aluminum Heating Plates
Remote Access
Touchscreen
Track/Trolley
1 Year Limited Warranty

Optional:
Remote access ($99 activation fee)

Optional Crane for loading plates: $7,500
Handheld Moisture Meter
Wireless Wood Core Temperature Sensor
Stainless V Roller
